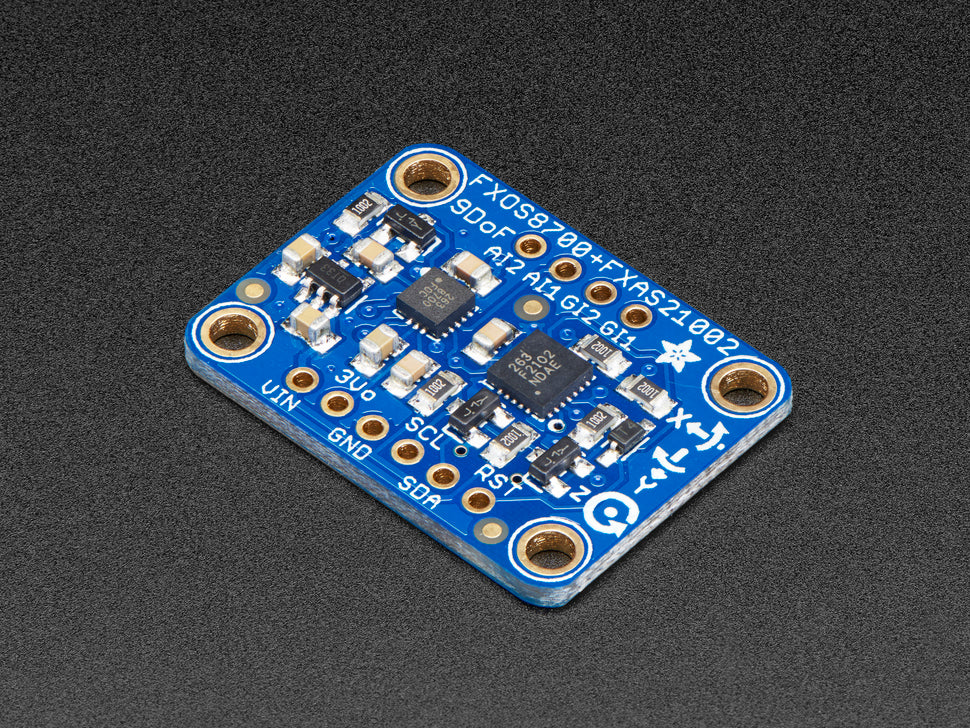

Adafruit Precision NXP 9-DOF Breakout Board - FXOS8700 + FXAS21002

The NXP Precision 9DoF board consists of two separate ICs, described in detail below:

FXOS8700 3-Axis Accelerometer/Magnetometer

• 2-3.6V Supply
• ±2 g/±4 g/±8 g adjustable acceleration range
• ±1200 µT magnetic sensor range
• Output data rates (ODR) from 1.563 Hz to 800 Hz
• 14-bit ADC resolution for acceleration measurements
• 16-bit ADC resolution for magnetic measurements

FXAS21002 3-Axis Gyroscope

• 2-3.6V Supply
• ±250/500/1000/2000°/s configurable range
• Output Data Rates (ODR) from 12.5 to 800 Hz
• 16-bit digital output resolution
• 192 bytes FIFO buffer (32 X/Y/Z samples)
